SLM 3D Printer

SLM printing uses selective laser melting technology which melts metal powders and solidifies layer by layer until a three-dimensional part is built. During the process, the ruler in the build chamber will pave one layer of the metal powder, a high powered laser selectively fuses the powder by tracing cross-section of the part on the surface of a powder bed and then a new coat of material is applied for the next layer. The whole process is in a high vacuum chamber or full of protective gas chamber to avoid the metal powder reacts with oxygen at high temperature.

ZRapid is using a high energy and fine spot laser, The equipment can complete complex parts in a very short period time while using conventional methods that will take several weeks or even months to complete in comparison. Parts not only have precise dimension, high tensile and high density, but also excellent in mechanical properties. Mainly used for rapid production of high-precision, high quality metal parts.

Fiber laser
Fast galvanometer
iSLM Control System

Materials:

Stainless Steel( 316L ) Aluminium Alloy( AlSi₁₀Mg ) Titanium Alloy( TC4 ) Co-Cr Alloy( MP1 ) Die Steel( MS1 ) Cuprum( Cu )

Online consulting

Quick Link: Download Specifications

KEY FEATURES

High speed · High precision · High quality

ZRapid SLM 3D Printers

Parts with high quality surface before polishing
Parts in high accuracy, for precision samples
Directly produce functional metal parts, simplify the manufacture process
Parts have metallurgy and mechanical properties, relative density higher than 99%. Post process is unnecessary
Parts can be printed within minutes to hours according to the size and complexity
Parts can be finished in minutes or hours based on the complexity
Directly produce functional complex geometric parts like snap-fit or loose joint hinge
Widely chosen materials, the metal powder could be single metal or alloy
Especially for single part or small amount of functional parts

Product Specifications

iSLM800QN Specifications

LASER SYSTEM	TypeFiber laser × 4 Wavelength1064nm Power(500W/1000W) × 4
RECOATING SYSTEM	Processbi-directional scraper paving Powder supplyDropping type, circulating automatic powder supply system Normal Build0.05mm Quick Build0.05~0.15mm Precision Build0.02~0.05mm
OPTICAL & SCANNING	Beam (diameter@1/e²)0.06~0.20mm Scanning GalvanometerHigh Speed Scanning Galvanometer × 4 Parts Scanning Speed4.0m/s (recommended) Blank Jumping Speed10.0~28.0m/s (recommended)
SHIELD SYSTEM	Protective gasN₂ / Ar (Active metal materials must be protected with Ar) Flow Control0~3 L/min intellient adjustment dust extraction controlHigh efficiency Protection recycling system
BUILD VAT	VolumeApprox. 500L XY Platform800mm(X) × 700mm(Y) (Screw hole, rounded, etc. are not calculated) Z Axis1000mm (Including substrate thickness) Max Weight300kg TypePrecision resistor heater MaterialsStainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
SOFTWARE	NetworkEthernet, TCP/IP, IEEE802.3 Control SoftwareiSLM(Presto SLM) Date Preparation Software3dLayer Data InterfaceCLI file, SLC file, STL file
INSTALLATION CONDITION	Power380V(±10%) AC 50/60Hz, three-phase, 5/20A Ambient Temperature20-26ºC Relative HumidityLess than 40%, non-condensing Size3.15m(W)×2.55m(D)×3.95m(H) WeightApprox. 12000kg (Climbing platform not included)
WARRANTY	Laser5000 hours or 12 months (whichever comes first) Main Machine12 months from installation date

※ The latest data shall be subject to the contract

iSLM600QN Specifications

LASER SYSTEM	TypeFiber laser × 4 Wavelength1064nm Power(500W/1000W) × 4
RECOATING SYSTEM	Processbi-directional scraper paving Powder supplyDropping type, circulating automatic powder supply system Normal Build0.05mm Quick Build0.05~0.15mm Precision Build0.02~0.05mm
OPTICAL & SCANNING	Beam (diameter@1/e²)0.06~0.20mm Scanning GalvanometerHigh Speed Scanning Galvanometer × 4 Parts Scanning Speed4.0m/s (recommended) Blank Jumping Speed10.0~28.0m/s (recommended)
SHIELD SYSTEM	Protective gasN₂ / Ar (Active metal materials must be protected with Ar) Flow Control0~3 L/min intellient adjustment dust extraction controlHigh efficiency Protection recycling system
BUILD VAT	VolumeApprox. 360L XY Platform600mm(X) × 600mm(Y) (Screw hole, rounded, etc. are not calculated) Z Axis1000mm (Including substrate thickness) Max Weight300kg TypePrecision resistor heater MaterialsStainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
SOFTWARE	NetworkEthernet, TCP/IP, IEEE802.3 Control SoftwareiSLM(Presto SLM) Date Preparation Software3dLayer Data InterfaceCLI file, SLC file, STL file
INSTALLATION CONDITION	Power380V(±10%) AC 50/60Hz, three-phase, 5/20A Ambient Temperature20-26ºC Relative HumidityLess than 40%, non-condensing Size3.30m(W)×1.65m(D)×4.05m(H) WeightApprox. 8500kg (Climbing platform not included)
WARRANTY	Laser5000 hours or 12 months (whichever comes first) Main Machine12 months from installation date

※ The latest data shall be subject to the contract

iSLM500D Specifications

LASER SYSTEM	TypeFiber laser × 2 Wavelength1064nm Power500W × 2
RECOATING SYSTEM	Processbi-directional scraper paving Normal Build0.05mm Quick Build0.05~0.15mm Precision Build0.02~0.05mm
OPTICAL & SCANNING	Beam (diameter@1/e²)0.06~0.20mm Scanning GalvanometerHigh Speed Scanning Galvanometer × 2 Parts Scanning Speed4.0m/s (recommended) Blank Jumping Speed10.0~28.0m/s (recommended) Reference Building Speed15~60cm³/h
SHIELD SYSTEM	Protective gasN₂ / Ar (Active metal materials must be protected with Ar) Flow Control0~3 L/min intellient adjustment dust extraction controlHigh efficiency Protection recycling system
BUILD VAT	VolumeApprox. 160L XY Platform500mm(X) × 400mm(Y) (Screw hole, rounded, etc. are not calculated) Z Axis900mm (Including substrate thickness) Max Weight300kg TypePrecision resistor heater MaterialsStainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
SOFTWARE	NetworkEthernet, TCP/IP, IEEE802.3 Control SoftwareiSLM(Presto SLM) Date Preparation Software3dLayer Data InterfaceCLI file, SLC file, STL file
INSTALLATION CONDITION	Power380V(±10%) AC 50/60Hz, three-phase, 3/15A Ambient Temperature20-26ºC Relative HumidityLess than 40%, non-condensing Size3.05m(W)×1.90m(D)×3.80m(H) WeightApprox. 8500kg (Climbing platform not included)
WARRANTY	Laser5000 hours or 12 months (whichever comes first) Main Machine12 months from installation date

※ The latest data shall be subject to the contract

iSLM420DN Specifications

LASER SYSTEM	TypeFiber laser × 2 Wavelength1064nm Power500W × 2
RECOATING SYSTEM	Processbi-directional scraper paving Powder supplyDropping type, circulating automatic powder supply system Normal Build0.05mm Quick Build0.05~0.15mm Precision Build0.02~0.05mm
OPTICAL & SCANNING	Beam (diameter@1/e²)0.06~0.20mm Scanning GalvanometerHigh Speed Scanning Galvanometer × 2 Parts Scanning Speed1.0~4.0m/s (recommended) Blank Jumping Speed10.0~20.0m/s (recommended) Reference Building Speed15~50cm³/h
SHIELD SYSTEM	Protective gasN₂ / Ar (Active metal materials must be protected with Ar) Flow Control0~3 L/min intellient adjustment dust extraction controlHigh efficiency Protection recycling system
BUILD VAT	VolumeApprox. 80L XY Platform420mm(X) × 420mm(Y) (Screw hole, rounded, etc. are not calculated) Z Axis500mm (Including substrate thickness) Max Weight150kg TypePrecision resistor heater MaterialsStainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
SOFTWARE	NetworkEthernet, TCP/IP, IEEE802.3 Control SoftwareiSLM(Presto SLM) Date Preparation Software3dLayer Data InterfaceCLI file, SLC file, STL file
INSTALLATION CONDITION	Power380V(±10%) AC 50/60Hz, three-phase, 3/15A Ambient Temperature20-26ºC Relative HumidityLess than 40%, non-condensing Size2.65m(W)×1.45m(D)×2.90m(H) WeightApprox. 3300kg (Climbing platform not included)
WARRANTY	Laser5000 hours or 12 months (whichever comes first) Main Machine12 months from installation date

※ The latest data shall be subject to the contract

iSLM420D Specifications

LASER SYSTEM	TypeFiber laser × 2 Wavelength1064nm Power500W × 2
RECOATING SYSTEM	Processbi-directional scraper paving Normal Build0.05mm Quick Build0.05~0.15mm Precision Build0.02~0.05mm
OPTICAL & SCANNING	Beam (diameter@1/e²)0.06~0.20mm Scanning GalvanometerHigh Speed Scanning Galvanometer × 2 Parts Scanning Speed1.0~4.0m/s (recommended) Blank Jumping Speed10.0~20.0m/s (recommended) Reference Building Speed15~50cm³/h
SHIELD SYSTEM	Protective gasN₂ / Ar (Active metal materials must be protected with Ar) Flow Control0~3 L/min intellient adjustment dust extraction controlHigh efficiency Protection recycling system
BUILD VAT	VolumeApprox. 80L XY Platform420mm(X) × 420mm(Y) (Screw hole, rounded, etc. are not calculated) Z Axis500mm (Including substrate thickness) Max Weight150kg TypePrecision resistor heater MaterialsStainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
SOFTWARE	NetworkEthernet, TCP/IP, IEEE802.3 Control SoftwareiSLM(Presto SLM) Date Preparation Software3dLayer Data InterfaceCLI file, SLC file, STL file
INSTALLATION CONDITION	Power380V(±10%) AC 50/60Hz, three-phase, 3/15A Ambient Temperature20-26ºC Relative HumidityLess than 40%, non-condensing Size2.65m(W)×1.45m(D)×2.70m(H) WeightApprox. 2800kg (Climbing platform not included)
WARRANTY	Laser5000 hours or 12 months (whichever comes first) Main Machine12 months from installation date

※ The latest data shall be subject to the contract

iSLM280 Specifications

LASER SYSTEM	TypeFiber laser Wavelength1064nm Power500W
RECOATING SYSTEM	Processbi-directional scraper paving Normal Build0.05mm Quick Build0.05~0.15mm Precision Build0.02~0.05mm
OPTICAL & SCANNING	Beam (diameter@1/e²)0.06~0.20mm Scanning GalvanometerHigh Speed Scanning Galvanometer Parts Scanning Speed1.0~4.0m/s (recommended) Blank Jumping Speed10.0m/s (recommended) Reference Building Speed4~20cm³/h
SHIELD SYSTEM	Protective gasN₂ / Ar (Active metal materials must be protected with Ar) Flow Control0~3 L/min intellient adjustment dust extraction controlHigh efficiency Protection recycling system
BUILD VAT	VolumeApprox. 25L XY Platform280mm(X) × 280mm(Y) (Screw hole, rounded, etc. are not calculated) Z Axis380mm (Including substrate thickness) Max Weight70kg TypePrecision resistor heater MaterialsStainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
SOFTWARE	NetworkEthernet, TCP/IP, IEEE802.3 Control SoftwareiSLM(Presto SLM) Date Preparation Software3dLayer Data InterfaceCLI file, SLC file, STL file
INSTALLATION CONDITION	Power220V(±10%) AC 50/60Hz, single-phase, 5/20A Ambient Temperature20-26ºC Relative HumidityLess than 40%, non-condensing Size1.75m(W)×1.40m(D)×2.20m(H)(Operating computer is not included) WeightApprox. 1800kg
WARRANTY	Laser5000 hours or 12 months (whichever comes first) Main Machine12 months from installation date

※ The latest data shall be subject to the contract

Download Specifications

iSLM160 Specifications

LASER SYSTEM	TypeFiber laser Wavelength1064nm Power200W / 500W
RECOATING SYSTEM	Processscraper paving Normal Build0.05mm Quick Build0.05~0.10mm Precision Build0.02~0.05mm
OPTICAL & SCANNING	Beam (diameter@1/e²)0.04~0.15mm Scanning GalvanometerHigh Speed Scanning Galvanometer Parts Scanning Speed1.0~2.0m/s (recommended) Blank Jumping Speed10.0m/s (recommended) Reference Building Speed2~15cm³/h
SHIELD SYSTEM	Protective gasN₂ / Ar (Active metal materials must be protected with Ar) Flow Control0~3 L/min intellient adjustment dust extraction controlHigh efficiency Protection recycling system
BUILD VAT	VolumeApprox. 5L XY Platform160mm(X) × 160mm(Y) Z Axis230mm (Including substrate thickness) Max Weight20kg TypePrecision resistor heater MaterialsStainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
SOFTWARE	NetworkEthernet, TCP/IP, IEEE802.3 Control SoftwareiSLM(Presto SLM) Date Preparation Software3dLayer( 3D Model Supporting & Slicing Software ) Data InterfaceCLI file, SLC file, STL file
INSTALLATION CONDITION	Power220V(±10%) AC 50/60Hz, single-phase, 5/20A Ambient Temperature20-26ºC Relative HumidityLess than 40%, non-condensing Size1.10m(W)×1.30m(D)×1.85m(H) WeightApprox. 1000kg
WARRANTY	Laser5000 hours or 12 months (whichever comes first) Main Machine12 months from installation date

※ The latest data shall be subject to the contract

Download Specifications

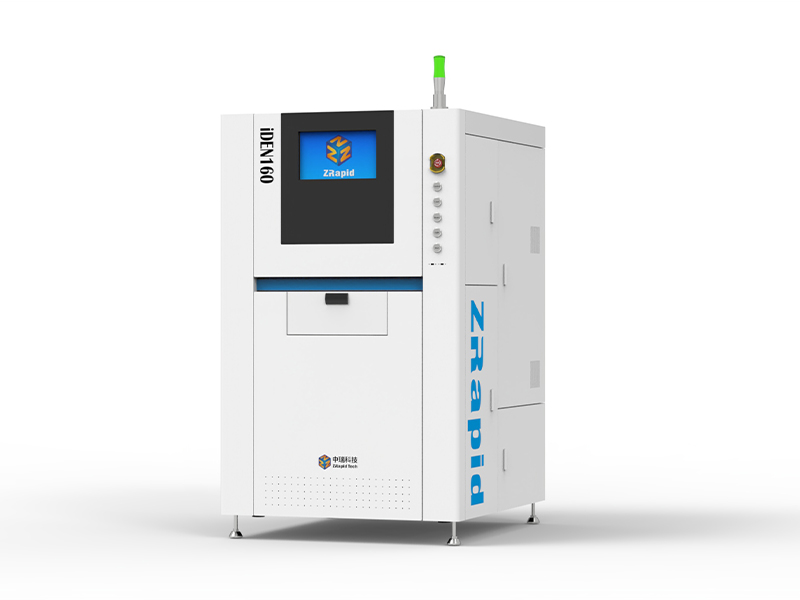

iDEN160 Specifications

LASER SYSTEM	TypeFiber laser Wavelength1064nm Power200W
RECOATING SYSTEM	Processscraper paving Normal Build0.03mm Quick Build0.03~0.10mm Precision Build0.02~0.03mm
OPTICAL & SCANNING	Beam (diameter@1/e²)0.05~0.15mm Scanning GalvanometerSCANLAB Parts Scanning Speed2.0m/s (recommended) Blank Jumping Speed10.0m/s (recommended) Reference Building Speed1200 crowns / 24h, 75 oral stents / 24h
SHIELD SYSTEM	Protective gasN₂ / Ar(active metal materials must be protected by Ar) Flow Control0~3 L/min intellient adjustment dust extraction controlHigh efficiency Protection recycling system dust extraction level4 levels of dust removal and purification
BUILD VAT	VolumeApprox. 5L XY Platform160mm(X) × 160mm(Y) Z Axis130mm (Including substrate thickness) Max Weight10kg Printing BoardFast replaceable board & effcient transition tank Drive modeServo motor precision redution drive TypePrecision resistor heater MaterialsPure Titanium / Titanium Alloy / Co-Cr Alloy etc.
SOFTWARE	NetworkEthernet, TCP/IP, IEEE802.3 Control SoftwareiSLM(Presto SLM) Date Preparation Software3dLayer Data InterfaceCLI file, SLC file, STL file
INSTALLATION CONDITION	Power220V(±10%) AC 50/60Hz, single-phase, 5/20A Ambient Temperature20-26ºC Relative HumidityLess than 40%, non-condensing Size1.10m(W)×1.30m(D)×1.85m(H) WeightApprox. 850kg
WARRANTY	Laser5000 hours or 12 months (whichever comes first) Main Machine12 months from installation date

※ The latest data shall be subject to the contract
